LED EMERGENCY DRIVER

Description:

Our VEM-K Series can be used on a large array of Lighting Fixtures for both T5 and T8 installations.

The VEM-K1500, LED emergency back-up kit includes constant wattage emergency driver, battery, high efficacy LED module and LED charging indicator light. The emergency back-up kit provides emergency lighting solution in different lighting fixture/luminaire with input power source of 120-277VAC.

VEM-K1500 switches to emergency mode when power fails, the kit gives constant 1500lm with 5000K LED module for a minimum of 90 minutes.

Electrical:

● Multi voltage (120-277VAC 50/60Hz)
● Maintenance-free, long-life, high temperature LiFePO4 battery
● Safety extra low output voltage: 12-50VDC
● Rated 10W for 90 minutes

Installation:

● For use with unswitched fixtures
● Does not affect existing lighting fixture/luminaire
● Suitable for damp and dry location
● Ambient temperature: 0°C/30°F - 60°C/140°F

Warranty:

● 5 Years
● UL, cUL, UL924 listed FCC Part 15 Class A, Compliance to EN 61547/1995+A1/2000

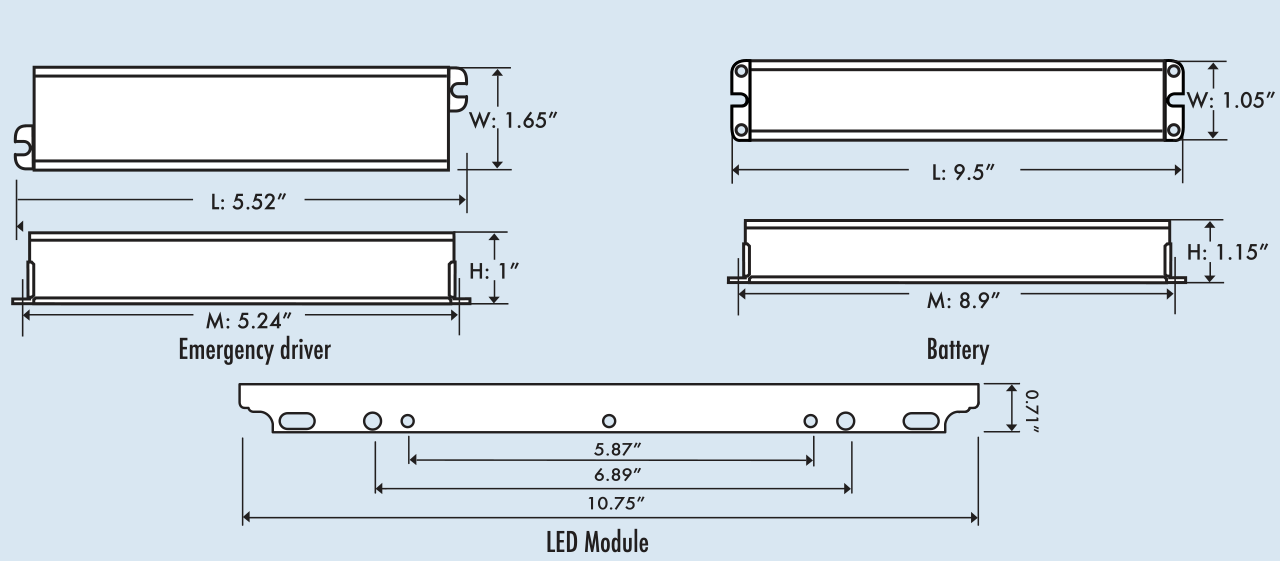

Case Dimensions:


VEM-K1500
Model: VEM-K1500

Our VEM-K Series can be used on a large array of Lighting Fixtures for both T5 and T8 installations.

The VEM-K1500, LED emergency back-up kit includes constant wattage emergency driver, battery, high efficacy LED module and LED charging indicator light. The emergency back-up kit provides emergency lighting solution in different lighting fixture/luminaire with input power source of 120-277VAC.

VEM-K1500 switches to emergency mode when power fails, the kit gives constant 1500lm with 5000K LED module for a minimum of 90 minutes.


Technical Specifications
Input Voltage
120-277 VAC, 50/60Hz
Lamp Operated
VLM01207L/850 (10W, 34VDC, 5000K, CRI 80, 1500lm)
Emergency Operation
90 Mins in 10W
Operating Temperature
0C/30F - 60C/140F
Battery
24hr recharge, LiFePO4
Approval
UL and cUL 924 Listed


User Manual VEM_K1500.pdf
