| | PRODUCT
INFORMATION | | | | Complete system of wirelessly controlled linear LED retrofit products, using a handheld remote control. Dims lights, changes color temperature, or turns lights on/off. Use with ballast bypass (Type B) TLEDs, an LED troffer retrofit kit, or 0-10V fixtures. | | | | Avoids costly commissioning of most wireless systems dual channel for dimming. Wall mount wireless charger. Adapter to convert existing fixtures to RF control. Dual channel drivers for new fixtures. Zoning control capability. | | | | Specification data is based on tests performed in a controlled environment and represents relative performance. Actual performance can vary depending on operating conditions. Application and performance data subject to change without notice. All specifications are nominal unless noted otherwise. | | | | | FEATURES: | -
Dual Channel for dimming -
Wall mount wireless charger -
Adapter to convert current fixtures to RF -
Dual channel drivers for new fixtures -
Dimmable Type B lamps | | | | | | | | OPERATION: | | versaDim RF control system charger VC720MV wireless charges versaDim RF remote and relay on/off control to LED power supply. | | | | | | ELECTRICAL RATING | | MODEL NO. | INPUT VOLTAGE | INPUT CURRENT MAX | INRUSH CURRENT MAX | INPUT WATTAGE MAX | CHARGING (OUTPUT) | | VRFA720MV-10V versaDim RF adapter | 120V AC, 50-60Hz 277 AC, 50-60Hz Electronic ballast LED driver | 6A 3A Electronic ballast LED driver | | 0.4W Electronic ballast LED driver | 5VDC, 60mA | | | | - Stand by power < 1W
- Dimming Ratings: 0-10V DC 100mA max output

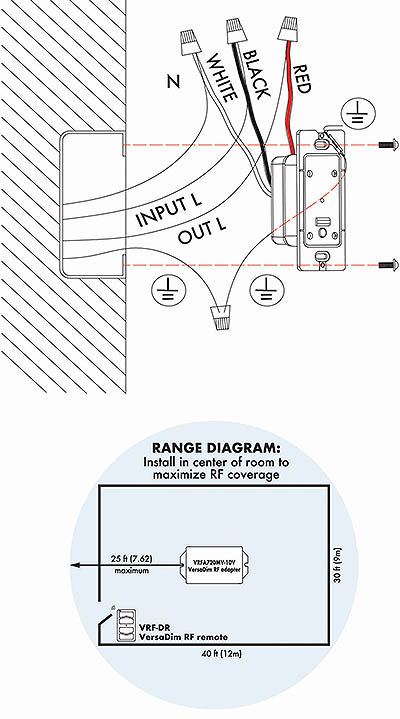

- Operating range: 25 ft
- Environmental Rating:
- Operating temp range/humidity: -35°/+45°C, 0-75%RH
- Storage: -35°/+85°C, 0-95%RH
- Indoor use only
| | | |
