Fluorescent Ballasts

VEC72120MR-1

Electronic Ballasts

Product Info

Model No. VEC72120MR-1
Family Stratus
Ballast Type Electronic
Lamp Operation Parallel
Input Voltage 120V
Starting Method Program Start

Product Specification
Lamp Type No. of Lamps Input Voltage (V) Input Current (A) Input Power (W) Power Factor MAX THD (%) Ballast Factor Min. Starting Temp.(F/C) Lamp Current Crest Factor B.E.F.
FC12T921200.80600.501350.9001.71.50
FC12T9 + FC16T921200.73680.501350.9001.7

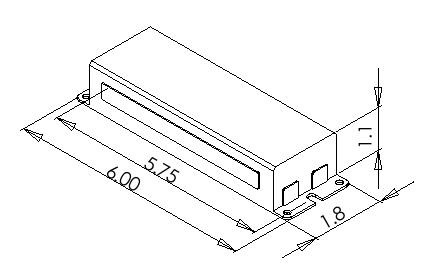

Physical Parameters
Enclosure (in)
Length 6.00
Width 1.8
Height 1.1
Mounting 5.75
Lead Length in.(+/-1.0)
Black
White
Red
Blue
Yellow

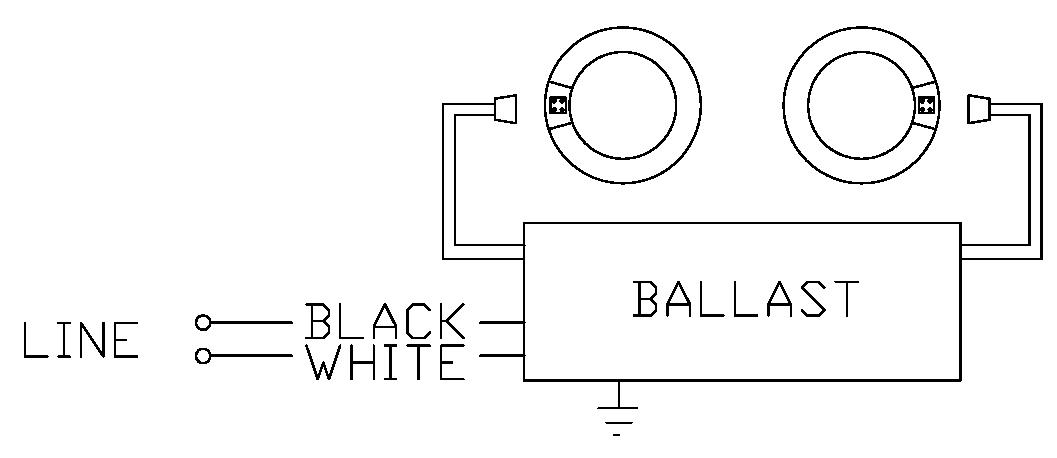

Wiring Diagram
