Fluorescent Ballasts

VE3P32MVHIPHE

Electronic Ballasts

Product Info

Model No. VE3P32MVHIPHE
Family Elite
Ballast Type Electronic
Lamp Operation Parallel
Input Voltage 120/277V
Starting Method Instant Start

Product Specification
Lamp Type No. of Lamps Input Voltage (V) Input Current (A) Input Power (W) Power Factor MAX THD (%) Ballast Factor Min. Starting Temp.(F/C) Lamp Current Crest Factor B.E.F.
F17T8 17W2120/2770.39/0.20470.95151.401.7
F25T8 25W2120/2770.54/0.24640.98101.3201.7
F40T8 40W2120/2770.86/0.371020.98101.301.7
F25T8 25W3120/2770.70/0.31840.98101.201.7
F32T8 32W3120/2770.93/0.40110/1080.98101.1701.71.06/1.08
F32T8 32W2120/2770.67/0.2980/790.98101.3801.7
F32T8/ES 25W2120/2770.59/0.27700.98101.301.7
F32T8/ES 28W2120/2770.63/0.28740.98101.301.7
F32T8/ES 30W2120/2770.65/0.29780.98101.301.7
F32T8/ES 25W3120/2770.73/0.32860.98101.1701.7
F32T8/ES 28W3120/2770.82/0.36970.98101.1701.7
F32T8/ES 30W3120/2770.88/0.381040.98101.1701.7


Physical Parameters
Enclosure (in)
Length 9.5
Width 1.3
Height 1
Mounting 8.91
Lead Length in.(+/-1.0)
Black 12
White 12
Red 36
Blue 24
Yellow N/A

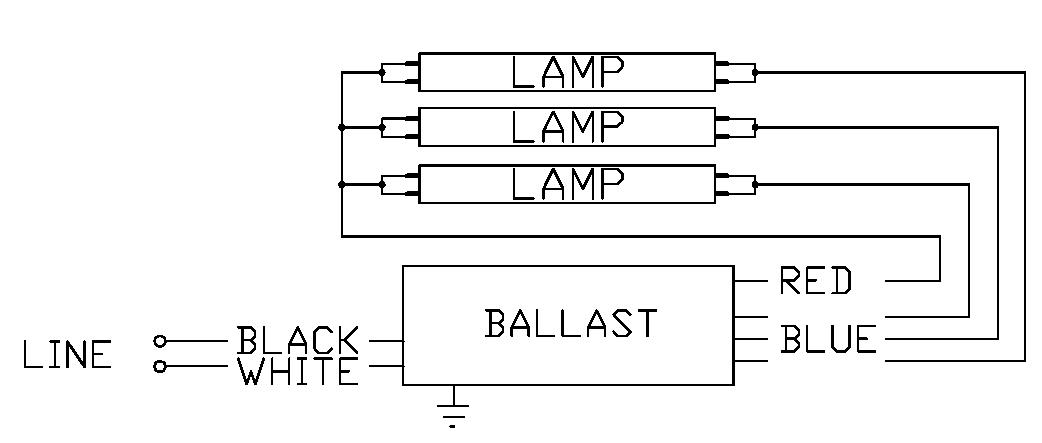

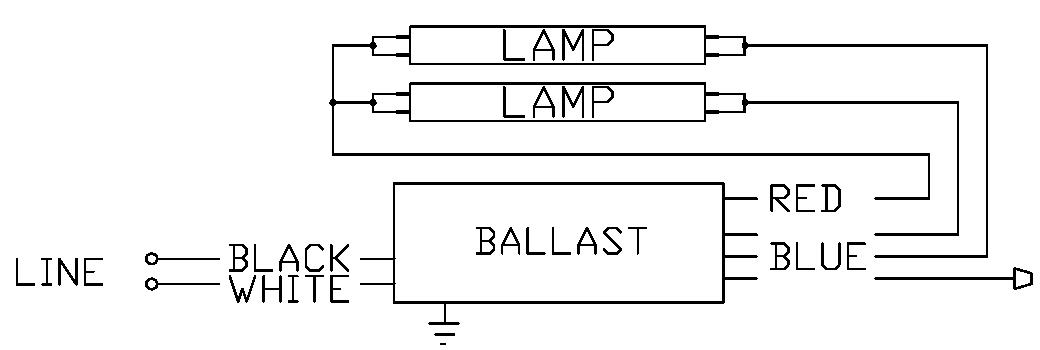

Wiring Diagram
