Fluorescent Ballasts

VE259MVHIP

Electronic Ballasts

Product Info

Model No. VE259MVHIP
Family Elite
Ballast Type Electronic
Lamp Operation Parallel
Input Voltage 120/277V
Starting Method Instant Start

Product Specification
Lamp Type No. of Lamps Input Voltage (V) Input Current (A) Input Power (W) Power Factor MAX THD (%) Ballast Factor Min. Starting Temp.(F/C) Lamp Current Crest Factor B.E.F.
F96T8 59W2120/2770.92/0.40108/1060.99100.88321.70.80
F96T8 59W1120/2770.57/0.2568/670.99101.09321.71.60/1.62
F40T8 40W1120/2770.41/0.18490.98101.0501.7
F40T8 40W2120/2770.62/0.27740.98100.90321.7
F72T8 46W2120/2770.75/0.32900.98101.15321.7
F72T8 46W1120/2770.48/0.21580.98101.20321.7
F96T8/ES 51W1120/2770.49/0.22590.98101.10321.7
F96T8/ES 51W2120/2770.81/0.3596/950.98101.00321.7
F96T8/ES 54W1120/2770.47/0.21570.98101.05321.7
F96T8/ES 54W2120/2770.77/0.33930.98100.87321.7
F96T8/ES 57W1120/2770.53/0.23630.98101.09321.7
F96T8/ES 57W2120/2770.86/0.371040.98100.90321.7


Physical Parameters
Enclosure (in)
Length 9.5
Width 1.3
Height 1.0
Mounting 8.91
Lead Length in.(+/-1.0)
Black 12
White 12
Red 36
Blue 24
Yellow N/A

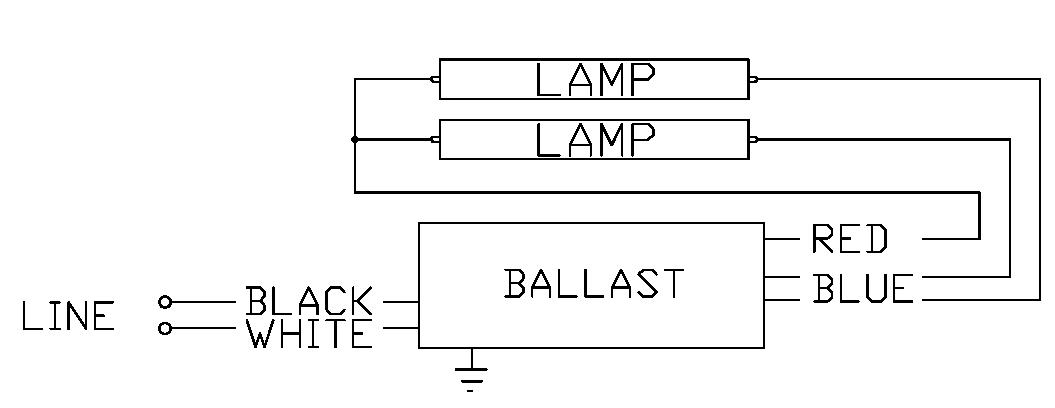

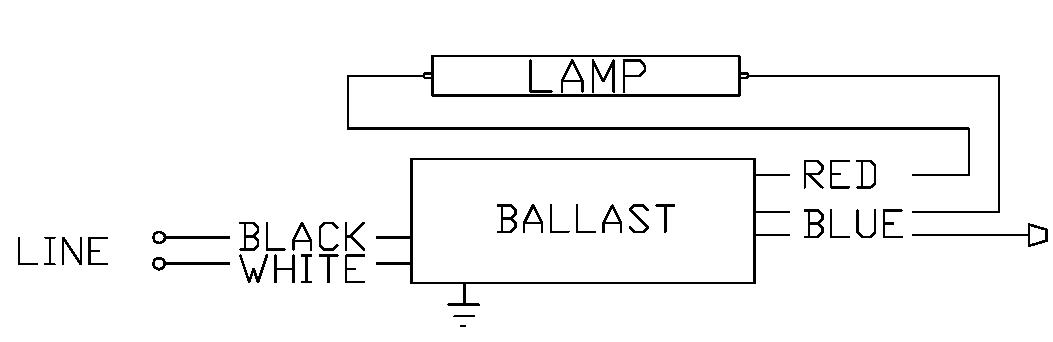

Wiring Diagram
