Fluorescent Ballasts

	Electronic Ballasts

Product Info

Model No.	VE2110120HRP
Family	Apollo
Ballast Type	Electronic
Lamp Operation	Series
Input Voltage	120V
Starting Method	Rapid Start

Product Specification

Lamp Type	No. of Lamps	Input Voltage (V)	Input Current (A)	Input Power (W)	Power Factor	MAX THD (%)	Ballast Factor	Min. Starting Temp.(F/C)	Lamp Current Crest Factor	B.E.F.
F96T12HO 110W	2	120	1.65	195	0.99	10	0.89	-20	1.7	0.46
F48T12HO 60W	2	120	0.88	104	0.98	10	1.12	-20	1.7	1.08
F60T12HO 75W	2	120	1.05	124	0.98	10	1	-20	1.7	0.69
F96T12/ES HO 95W	2	120	1.44	170	0.99	10	0.89	60	1.7	0.94
F72T12HO 85W	2	120	1.25	148	0.98	10	0.91	-20	1.7	0.55
F96T12HO 110W	1	120	0.92	109	0.98	10	0.9	-20	1.7	0.62
F96T12/ES HO 95W	1	120	0.8	95	0.98	10	1.05	60	1.7	1.11

Physical Parameters

Enclosure	(in)
Length	11.75
Width	2.3
Height	1.6
Mounting	11

Lead Length	in.(+/-1.0)
Black
White
Red
Blue
Yellow

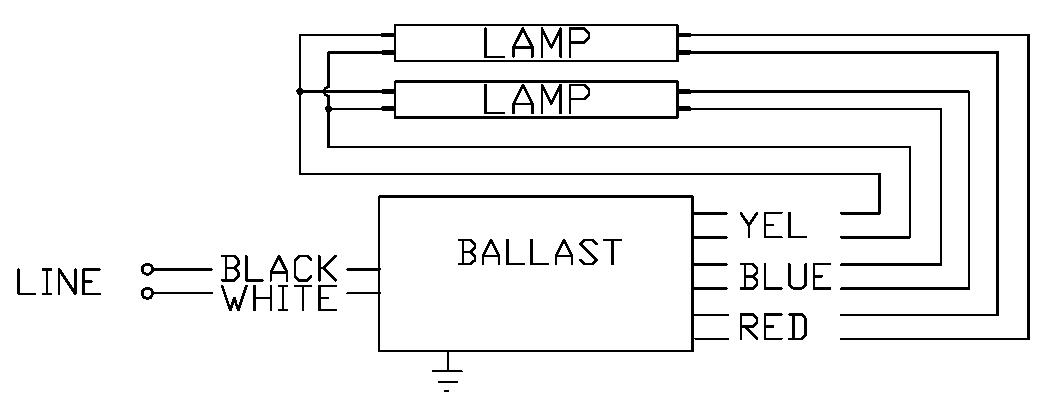

Wiring Diagram
