Product Info

Model No.	VE228MVHRP
Family	Elite
Ballast Type	Electronic
Lamp Operation	Series
Input Voltage	120/277V
Starting Method	Program Start

Product Specification

Lamp Type	No. of Lamps	Input Voltage (V)	Input Current (A)	Input Power (W)	Power Factor	MAX THD (%)	Ballast Factor	Min. Starting Temp.(F/C)	Lamp Current Crest Factor	B.E.F.
F21T5	2	120/277	0.39/0.17	49	0.98	10	1.02	0	1.7	2.08
F28T5/ES-25W	2	120/277	0.49/0.21	58/57	0.98	10	1.00	32	1.7	1.72/1.75
F14T5	2	120/277	0.28/0.13	33	0.98	10	1.04	0	1.7	3.15
F28T5	2	120/277	0.50/0.23	62/61	0.98	10	1.00	0	1.7	1.61/1.64
F28T5	1	120/277	0.29/0.12	31	0.98	10	1.05	0	1.7	3.39
F28T5/ES-25W	1	120/277	0.29/0.11	33/30	0.98	10	1.00	32	1.7	3.03/3.33
F21T5	1	120/277	0.22/0.10	25	0.98	10	1.06	0	1.7	4.24
F14T5	1	120/277	0.14/0.07	17	0.98	10	1.07	0	1.7	6.29
F35T5	1	120/277	0.34/0.15	40	0.98	10	1.01	0	1.7	2.53

Physical Parameters

Enclosure	(in)
Length	9.5
Width	1.3
Height	1.0
Mounting	8.91

Lead Length	in.(+/-1.0)
Black	25
White	25
Red	31
Blue	31
Yellow	46

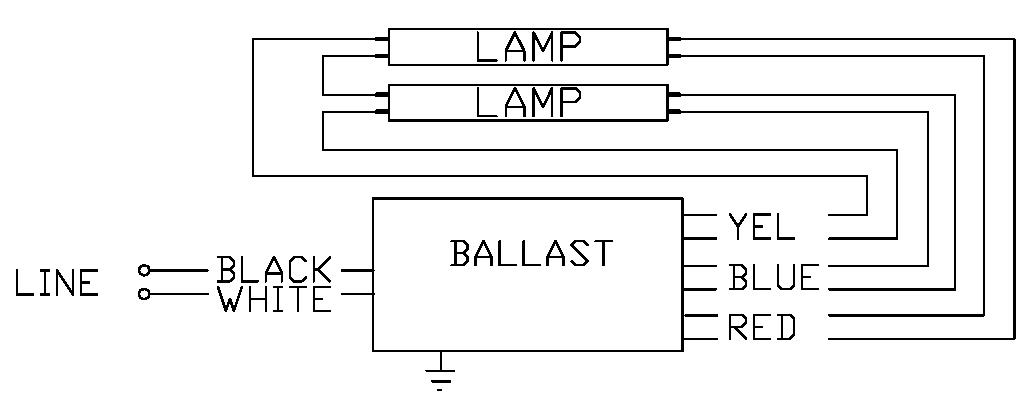

Wiring Diagram
