Electronic Ballasts

Product Info Model No. VE454MVHRP TAA Family Elite Ballast Type Electronic Lamp Operation Parallel-Serial Input Voltage 120/277V Starting Method Program Start

---

Product Specification

Lamp Type No. of Lamps Input Voltage (V) Input Current (A) Input Power (W) Power Factor MAX THD (%) Ballast Factor Min. Starting Temp.(F/C) Lamp Current Crest Factor B.E.F. F54T5HO 54W 4 120/277 2.00/0.86 240/234 0.98 10 1 -20 1.7 F54T5HO 54W 3 120/277 1.52/0.66 182/179 0.98 10 1.03 -20 1.7

---

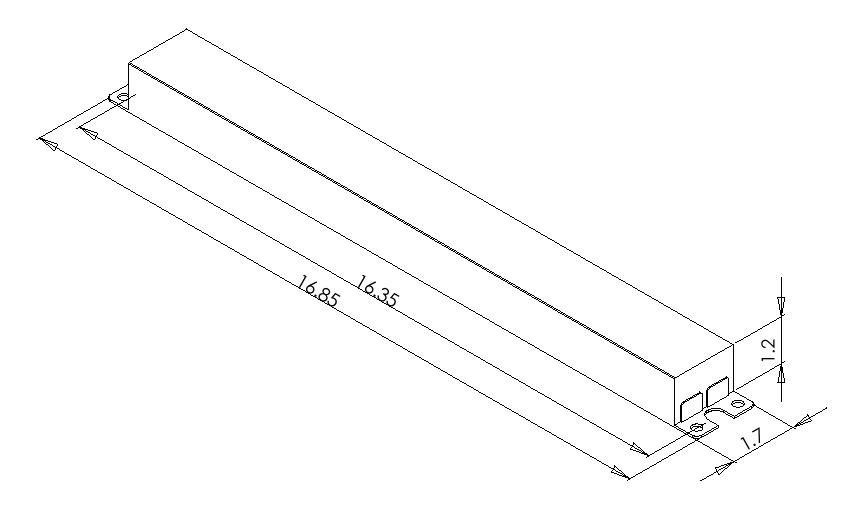

Physical Parameters
	Enclosure (in) Length 16.85 Width 1.7 Height 1.2 Mounting 16.35	Lead Length in.(+/-1.0) Black White Red Blue Yellow

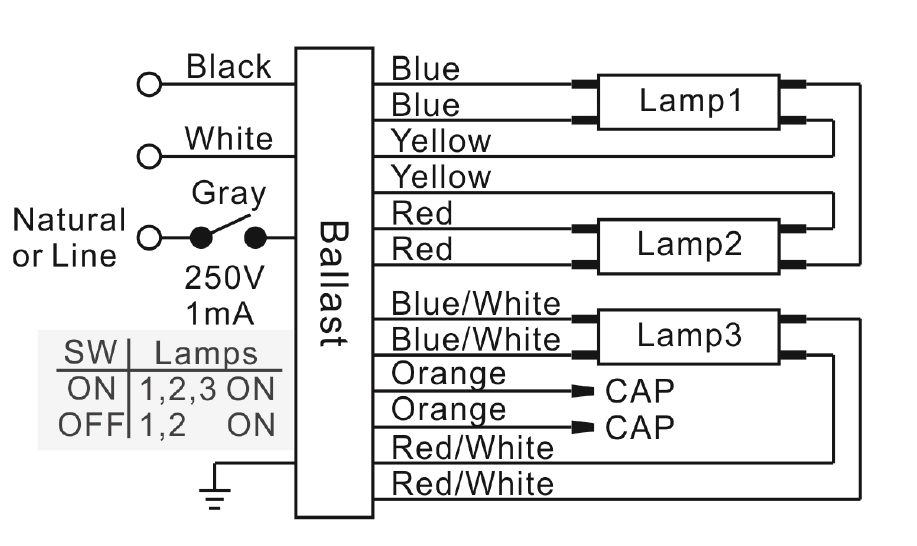

Wiring Diagram
