Electronic Ballasts

Product Info Model No. VE254MVHRP TAA Family Elite Ballast Type Electronic Lamp Operation Serial Input Voltage 120/277V Starting Method Program Start

---

Product Specification

Lamp Type No. of Lamps Input Voltage (V) Input Current (A) Input Power (W) Power Factor MAX THD (%) Ballast Factor Min. Starting Temp.(F/C) Lamp Current Crest Factor B.E.F. F54T5HO 54W 2 120/277 1.0/0.43 120 0.98 10 1 -20 1.7 F54T5HO 54W 1 120/277 0.50/0.23 62 0.98 10 1.03 -20 1.7

---

Physical Parameters
	Enclosure (in) Length 9.5 Width 1.3 Height 1 Mounting 8.91	Lead Length in.(+/-1.0) Black White Red Blue Yellow

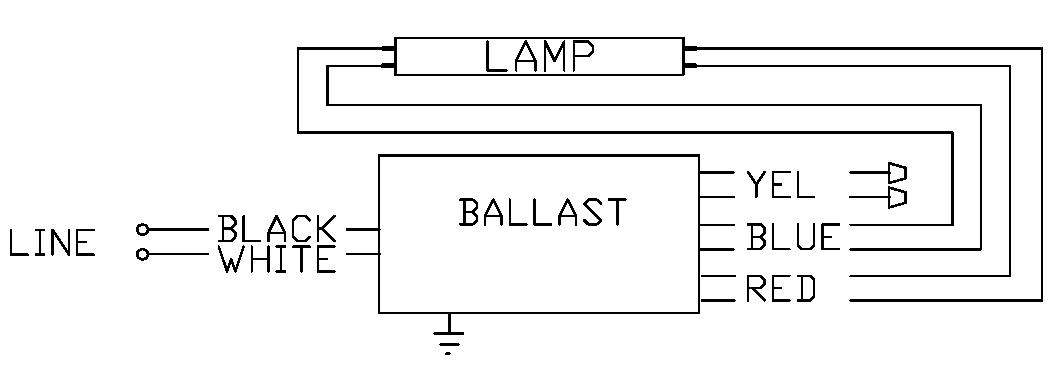

Wiring Diagram
