Electronic Ballasts

Product Info Model No. VEL60BN-4C-10V TAA Family RetroFlex Driver Driver type Constant Current Lamp Operation Parallel Input Voltage 120-277V Input Frequency 50/60Hz Starting Method Instant Start Dimming 0-10V Dimming

---

Product Specification

Lamp Type No. of lamps Input Voltage (V) Input Power (W) Input Current (mA) Power Factor MAX THD (%) L24T8/8XX/10G-EB 3 120-277V 39W 0.33@120V >0.90 <10% L24T8/8XX/10G-EB 4 120-277V 48W 0.4@120V >0.90 <10% L36T8/8XX/10G-EB 3 120-277V 39W 0.33@120V >0.90 <10% L36T8/8XX/10G-EB 4 120-277V 48W 0.4@120V >0.90 <10% L48T8/8XX/10G-EB 3 120-277V 42W 0.35@120V >0.90 <10% L48T8/8XX/10G-EB 4 120-277V 52W 0.43@120V >0.90 <10% L48T8/8XX/12G-EB 3 120-277V 47W 0.39@120V >0.90 <10% L48T8/8XX/12G-EB 4 120-277V 60W 0.5@120V >0.90 <10% L48T8/8XX/12G-EB-AC 3 120-277V 47W 0.39@120V >0.90 <10% L48T8/8XX/12G-EB-AC 4 120-277V 60W 0.5@120V >0.90 <10% L48T8/8XX/14G-EB 3 120-277V 52W 0.43@120V >0.90 <10% L48T8/8XX/14G-EB 4 120-277V 68W 0.57@120V >0.90 <10% L48T8/8XX/15G-EB-AC 3 120-277V 55W 0.46@120V >0.90 <10% L48T8/8XX/15G-EB-AC 4 120-277V 72W 0.6@120V >0.90 <10% L48T8/8XX/12P-EB 3 120-277V 47W 0.39@120V >0.90 <10% L48T8/8XX/12P-EB 4 120-277V 60W 0.5@120V >0.90 <10% L24T8/8XX/9G-AB 3 120-277V 39W 0.33@120V >0.90 <10% L24T8/8XX/9G-AB 4 120-277V 48W 0.4@120V >0.90 <10% L36T8/8XX/11G-AB 3 120-277V 44W 0.37@120V >0.90 <10% L36T8/8XX/11G-AB 4 120-277V 56W 0.47@120V >0.90 <10% L48T8/8XX/12G-AB 4 120-277V 60W 0.5@120V >0.90 <10% L48T8/8XX/12G-AB 3 120-277V 47W 0.39@120V >0.90 <10% LB48T8U6/8XX/13P-AB 3 120-277V 50W 0.42@120V >0.90 <10% LB48T8U6/8XX/13P-AB 4 120-277V 64W 0.53@120V >0.90 <10% LB31T8U/8XX/13P-AB 3 120-277V 50W 0.42@120V >0.90 <10% LB31T8U/8XX/13P-AB 4 120-277V 64W 0.53@120V >0.90 <10%

Performance: Meets ANSI Standard C62.41 Meets FCC Part 15 Class A Active Power Factor Correction

Safety: No PCB's UL, cUL classified RoHS Compliance

Applications: Open Circuit Voltage: 300VDC High Efficienc Min. Starting Temperature: -18C Max. Operating Temperature: 40C

---

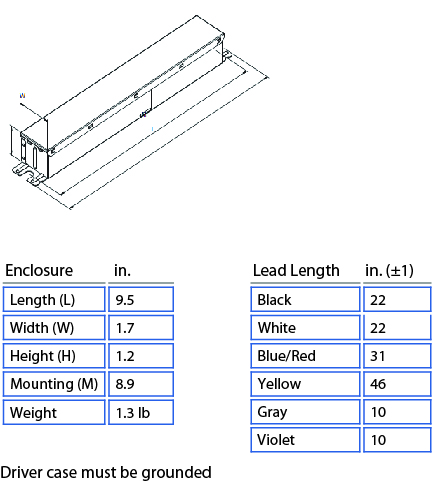

Physical Parameters

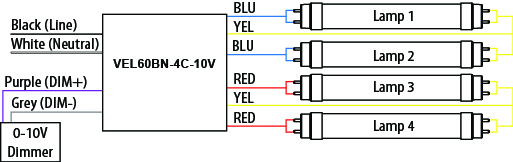

Wiring Diagram
