Electronic Ballasts

Product Info Model No. VEL30BN-2C-10V TAA Family RetroFlex Driver Driver type Constant Current Lamp Operation Series Input Voltage 120-277V Input Frequency 50/60Hz Starting Method Instant Start Dimming 0-10V Dimming

---

Product Specification

Lamp Type No. of lamps Input Voltage (V) Input Power (W) Input Current (mA) Power Factor MAX THD (%) L36T5HO/8xx/18G-EB-AC 1 (driver dip switch set at 240mA) 120-277V 16W 0.14@120V >0.90 <10% L36T5HO/8xx/18G-EB-AC 2 (driver dip switch set at 240mA) 120-277V 25W 0.22@120V >0.90 <10% L24T8/8XX/10G-EB 1 120-277V 15W 0.13@120V >0.90 <10% L24T8/8XX/10G-EB 2 120-277V 24W 0.2@120V >0.90 <10% L36T8/8XX/10G-EB 1 120-277V 15W 0.13@120V >0.90 <10% L36T8/8XX/10G-EB 2 120-277V 24W 0.2@120V >0.90 <10% L48T8/8XX/10G-EB 1 120-277V 16W 0.13@120V >0.90 <10% L48T8/8XX/10G-EB 2 120-277V 26W 0.22@120V >0.90 <10% L48T8/8XX/12G-EB 1 120-277V 17W 0.14@120V >0.90 <10% L48T8/8XX/12G-EB 2 120-277V 30W 0.25@120V >0.90 <10% L48T8/8XX/12G-EB-AC 1 120-277V 17W 0.14@120V >0.90 <10% L48T8/8XX/12G-EB-AC 2 120-277V 30W 0.25@120V >0.90 <10% L48T8/8XX/14G-EB 1 120-277V 18W 0.15@120V >0.90 <10% L48T8/8XX/14G-EB 2 120-277V 34W 0.28@120V >0.90 <10% L48T8/8XX/15G-EB-AC 1 120-277V 19W 0.16@120V >0.90 <10% L48T8/8XX/15G-EB-AC 2 120-277V 36W 0.3@120V >0.90 <10% L48T8/8XX/12P-EB 1 120-277V 17W 0.14@120V >0.90 <10% L48T8/8XX/12P-EB 2 120-277V 30W 0.25@120V >0.90 <10% L24T8/8XX/9G-AB 1 120-277V 15W 0.13@120V >0.90 <10% L24T8/8XX/9G-AB 2 120-277V 24W 0.2@120V >0.90 <10% L36T8/8XX/11G-AB 1 120-277V 16W 0.13@120V >0.90 <10% L36T8/8XX/11G-AB 2 120-277V 28W 0.23@120V >0.90 <10% L48T8/8XX/12G-AB 1 120-277V 17W 0.14@120V >0.90 <10% L48T8/8XX/12G-AB 2 120-277V 30W 0.25@120V >0.90 <10% LB31T8U/8XX/13P-AB 1 120-277V 18W 0.15@120V >0.90 <10% LB31T8U/8XX/13P-AB 2 120-277V 32W 0.27@120V >0.90 <10% LB48T8U6/8XX/13P-AB 1 120-277V 18W 0.15@120V >0.90 <10% LB48T8U6/8XX/13P-AB 2 120-277V 32W 0.27@120V >0.90 <10% L48T5HE/8XX/13P-EB 1 (driver dip switch set at 210mA) 120-277V 19W 0.16@120V >0.90 <10% L48T5HE/8XX/13P-EB 2 (driver dip switch set at 210mA) 120-277V 36W 0.3@120V >0.90 <10%

Performance: Meets ANSI Standard C62.41 Meets FCC Part 15 Class A Active Power Factor Correction

Safety: No PCB's UL, cUL classified RoHS Compliance

Applications: Open Circuit Voltage: 300VDC High Efficienc Min. Starting Temperature: -18C Max. Operating Temperature: 40C

---

Physical Parameters

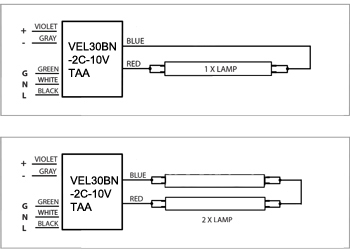

Wiring Diagram
