Single End Flex Lamp
Commercial GradeLED T8 Lamp | | Features & Benefits - High performance plastic series
- Long life
- High CRI
- Instant on, no delay or warm up time
- Convenient and quick installation
- Works in cold temperature applications
- Compatible with controls and sensors
- Glass tube for superior optical performance
- 5 Year Warranty
|
Specification |
| LB31T8U/830/13P-AB BAA/TAA | 24 | 120-277V | 13 | 16 | 3000K | 1800 | 83 | 240 | 138 | 112 | 50000 | | LB31T8U/835/13P-AB BAA/TAA | 24 | 120-277V | 13 | 16 | 3500K | 1800 | 83 | 240 | 138 | 112 | 50000 | | LB31T8U/840/13P-AB BAA/TAA | 24 | 120-277V | 13 | 16 | 4000K | 1900 | 83 | 240 | 146 | 118 | 50000 | | LB31T8U/850/13P-AB BAA/TAA | 24 | 120-277V | 13 | 16 | 5000K | 2000 | 83 | 240 | 153 | 125 | 50000 | |

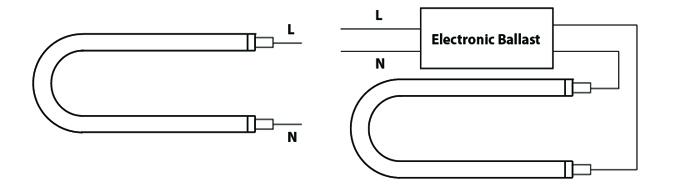

Wiring Diagram |
 |
DLC Information |
| LB31T8U/830/13P-AB BAA/TAA | N/A | N/A | N/A | | LB31T8U/835/13P-AB BAA/TAA | N/A | N/A | N/A | | LB31T8U/840/13P-AB BAA/TAA | PLWMGE5E6TC0 | LB31T8U/840/13P-AB | 5 | | LB31T8U/850/13P-AB BAA/TAA | PLIRLCNDPC5X | LB31T8U/850/13P-AB | 5 | |
