| PRODUCT FEATURES | |||
 | Non-Isolated Autotransformer | | Designed for lighting applications |
| UL Listed | -LED | |
| Thermally Protected (auto reset) | -Electronic ballasts | |
| Max Casing Temperature 105°C | -HID | |
| Sound rated A | | Low profile cases |
| 5 year limited warranty | ||
| Application Notes | |||
| Supply current frequency 60Hz | | Do not use on ungrounded systems |
 |  | ||
| PRODUCT SPECIFICATION | STEP DOWN TRANSFORMER |
| Order Code | Input Voltage | Power Factor | Output Voltage | Max. Output Power |
|---|---|---|---|---|
| VETR480/277-110VA | 480V/347V | 0.95 | 277V/240V | 110VA |

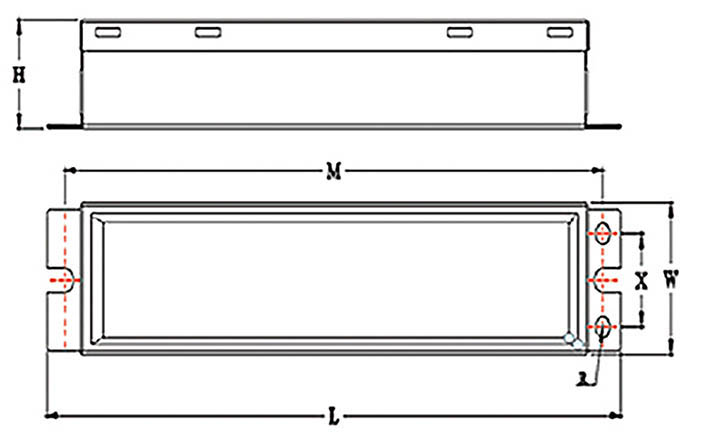

| Physical Parameters | ||||||||||||||||||
 |
|

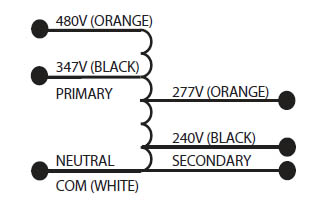

| Wiring Diagram |
 |
