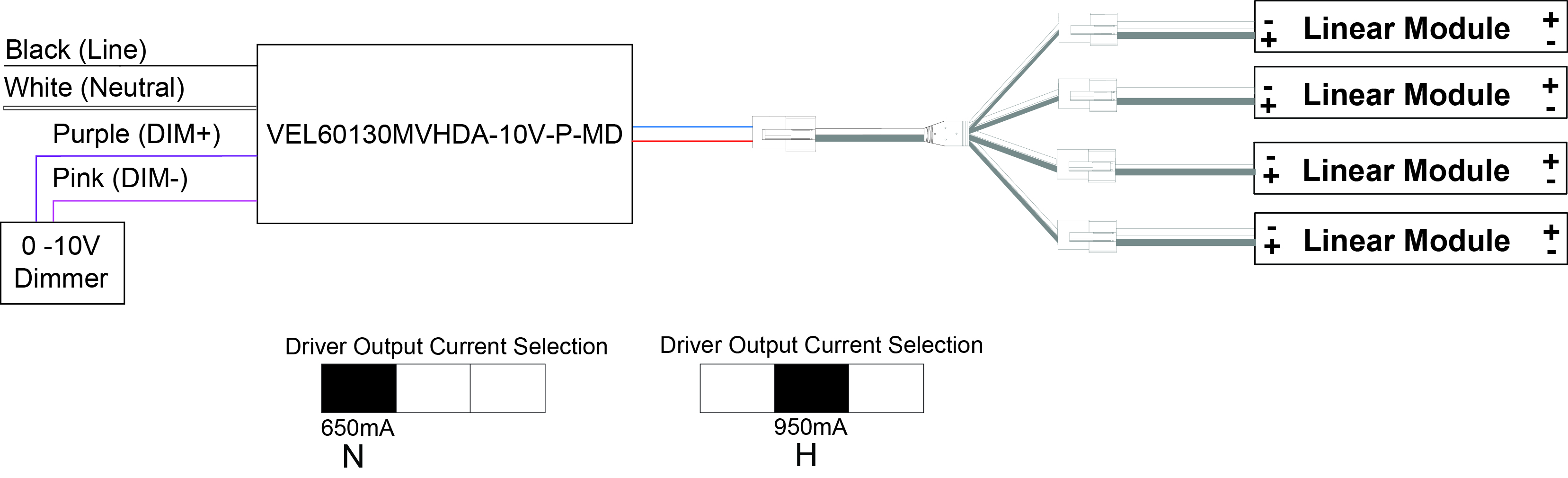

The UL 1598C Classified LED retrofit kits with linear modules are perfect for any linear applications such as troffer, wraparound, strips, etc. Aluminum backing provides the best heatsink so it can fit for severe working conditions. Paired drivers offer power selection and 0-10V dimmability for most versatility. The linear retrofit kit are an one-fits-all solution.
| Ordering Code | Applicatio | Mode | Kit Model | System Wattage | System Lumens | System Efficacy | CCT | CRI | Input Voltage | Module Qty | Module | Driver | THD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VEBK44F/830 N | 4 lamp, 4ft 3000K | Normal Wattage | VEBK44F/830 N | 25.5 | 4225 | 165 | 3000 | 84 | 120-277V | 4 | VLM4810F/830 | VEL60130MVHDA-10V-P-MD | <20% |
| VEBK44F/835 N | 4 lamp, 4ft 3500K | Normal Wattage | VEBK44F/835 N | 25.5 | 4225 | 165 | 3500 | 84 | 120-277V | 4 | VLM4810F/835 | VEL60130MVHDA-10V-P-MD | <20% |
| VEBK44F/840 N | 4 lamp, 4ft 4000K | Normal Wattage | VEBK44F/840 N | 25.5 | 4250 | 166 | 4000 | 84 | 120-277V | 4 | VLM4810F/840 | VEL60130MVHDA-10V-P-MD | <20% |
| VEBK44F/850 N | 4 lamp, 4ft 5000K | Normal Wattage | VEBK44F/850 N | 25.5 | 4250 | 166 | 5000 | 84 | 120-277V | 4 | VLM4810F/850 | VEL60130MVHDA-10V-P-MD | <20% |
| VEBK44F/830 H | 4 lamp, 4ft 3000K | High Wattage | VEBK44F/830 H | 38 | 6200 | 163 | 3000 | 84 | 120-277V | 4 | VLM4810F/830 | VEL60130MVHDA-10V-P-MD | <20% |
| VEBK44F/835 H | 4 lamp, 4ft 3500K | High Wattage | VEBK44F/835 H | 38 | 6200 | 163 | 3500 | 84 | 120-277V | 4 | VLM4810F/835 | VEL60130MVHDA-10V-P-MD | <20% |
| VEBK44F/840 H | 4 lamp, 4ft 4000K | High Wattage | VEBK44F/840 H | 38 | 6300 | 166 | 4000 | 84 | 120-277V | 4 | VLM4810F/840 | VEL60130MVHDA-10V-P-MD | <20% |
| VEBK44F/850 H | 4 lamp, 4ft 5000K | High Wattage | VEBK44F/850 H | 38 | 6300 | 166 | 5000 | 84 | 120-277V | 4 | VLM4810F/850 | VEL60130MVHDA-10V-P-MD | <20% |
| Ordering Code | DLC Model | Mode | DLC Product ID | DLC Product Model | DLC Version |
|---|---|---|---|---|---|
| VEBK44F/830 N | VEBK44F/830 N | Normal Wattage | Pending | VEBK44F/830 N | 5.1 |
| VEBK44F/835 N | VEBK44F/835 N | Normal Wattage | Pending | VEBK44F/835 N | 5.1 |
| VEBK44F/840 N | VEBK44F/840 N | Normal Wattage | Pending | VEBK44F/840 N | 5.1 |
| VEBK44F/850 N | VEBK44F/850 N | Normal Wattage | Pending | VEBK44F/850 N | 5.1 |
| VEBK44F/830 H | VEBK44F/830 H | High Wattage | Pending | VEBK44F/830 H | 5.1 |
| VEBK44F/835 H | VEBK44F/835 H | High Wattage | Pending | VEBK44F/835 H | 5.1 |
| VEBK44F/840 H | VEBK44F/840 H | High Wattage | Pending | VEBK44F/840 H | 5.1 |
| VEBK44F/850 H | VEBK44F/850 H | High Wattage | Pending | VEBK44F/850 H | 5.1 |
Specification data is based on tests performed in a controlled environment and represents relative performance. Actual performance can vary depending on operating conditions. Application and performance data subject to change without notice. All specifications are nominal unless noted otherwise.
