Slimline

Commercial Grade LED T8 Lamp

L60T8/SL/8XX/15G-EB

L60T8/SL/8XX/15G-EB

Descriptions:

The RetroFlex (Type A) LED lamps provide hassle-free installation with simple lamp-for-lamp replacements for your linear fluorescent T8 or T12 slimline (FA8) retrofit needs. Fully certified to replace original fluorescent lamps, these lamps provide the perfect, hassle-free solution for whatever the project requires. When being used with an instant start, programmed start, or emergency backup ballast, no fixture re-wiring is needed.

Features & Benefits:

  • No rewiring needed
  • Works with fluorescent electronic ballast VE259MVHIP
  • Long life
  • High CRI
  • Instant on, no delay
  • Convenient and quick installation
  • Utilizes existing instant start or rapid start sockets
  • Compatible with controls and sensors
  • No Mercury, No UV
  • Works in cold temperature applications
  • Glass tube for superior optical performance
  • Wide View Angle
  • 5 Year Warranty
  • New Version with Integrated ArmorCoat For use in food areas and refrigerated food displayers

Specifications (Based on Normal Ballast Factor):

Ordering Code

Length

(in)

 Lamp
Wattage		 System
Wattage

CCT

(K)

 Initial
Lumens		 CRI Beam
Angle		 Lamp
Efficacy		 System
Efficacy

Life

(hr)
L60T8/SL/830/15G-EB6015183000K220083+32513512050000
L60T8/SL/835/15G-EB6015183500K220083+32513512050000
L60T8/SL/840/15G-EB6015184000K220083+32513512050000
L60T8/SL/850/15G-EB6015185000K220083+32513512050000

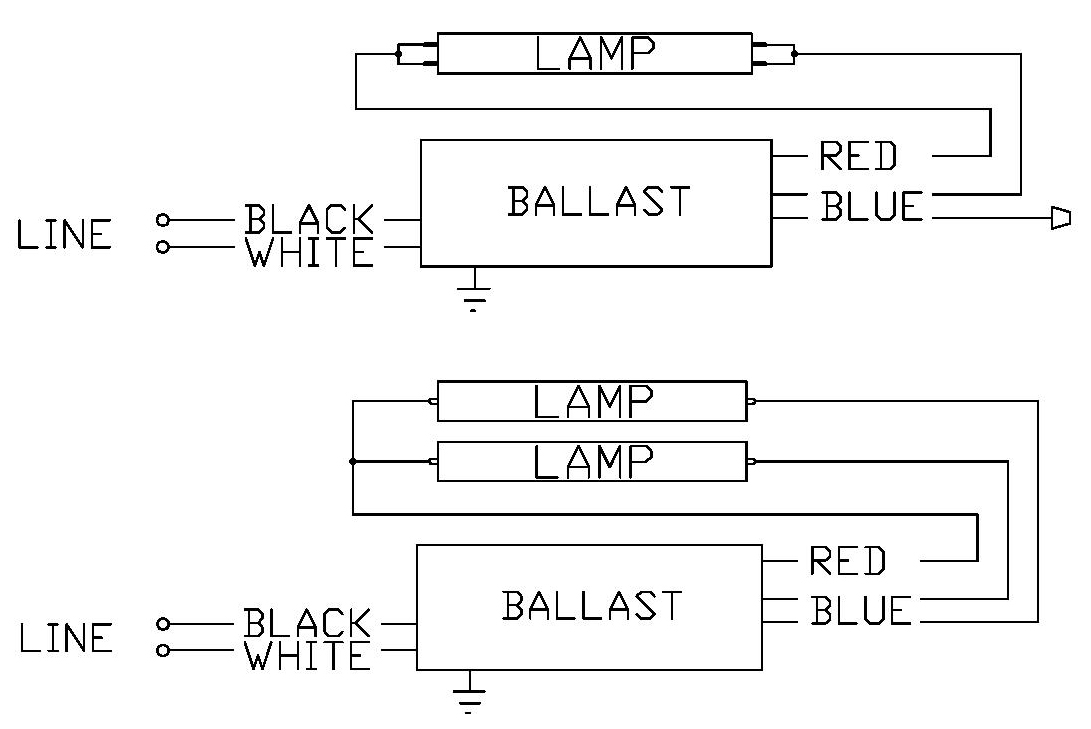

Wiring Diagram:


  • Please refer to "Ballast Compatibility List" for compatible battery backup and/or emergency ballasts.
  • Please refer to "Ballast Compatibility List" on Related Downloads.

Specification data is based on tests performed in a controlled environment and represents relative performance. Actual performance can vary depending on operating conditions. Application and performance data subject to change without notice. All specifications are nominal unless noted otherwise.
