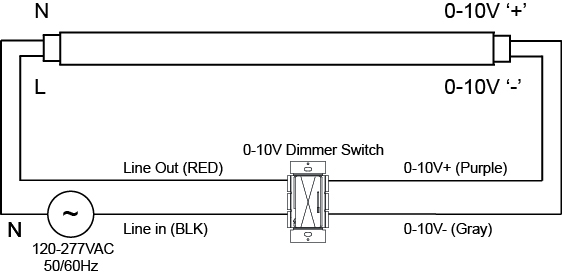

The Flex (Type B) lamps are designed to be the perfect retrofit solution to move from traditional fluorescent lamps to energy saving LEDs. This ballast bypass lamp has everything needed built into the lamp with proven energy savings, long life, surge suppression and industry leading safety features. 0-10V capability works direct with any 0-10V dimmers, photocells or controls. The single ended lamp has power on one end and dimming on the other end.
| Ordering Code | Length (in) | Lamp Base | Lamp Wattage | Input Voltage | CCT (K) | Initial Lumens | CRI | Beam Angle | System Efficacy | Power Factor | THD |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L48T8/830/14G-ID-10V | 48 | G13 | 14 | 120-277 | 3000 | 1850 | 83 | 325 | 130 | 0.9 | <20% |
| L48T8/835/14G-ID-10V | 48 | G13 | 14 | 120-277 | 3500 | 1850 | 83 | 325 | 130 | 0.9 | <20% |
| L48T8/840/14G-ID-10V | 48 | G13 | 14 | 120-277 | 4000 | 1850 | 83 | 325 | 130 | 0.9 | <20% |
| L48T8/850/14G-ID-10V | 48 | G13 | 14 | 120-277 | 5000 | 1850 | 83 | 325 | 130 | 0.9 | <20% |
Note: Will not operate on shunted sockets. Use only with non-shunted (rapid start) sockets.
| Ordering Code | DLC Product ID | DLC Product Model | DLC Version |
|---|---|---|---|
| L48T8/830/14G-ID-10V | PDKWUCOI | L48T8/830/14G-ID-10V | 5.1 |
| L48T8/835/14G-ID-10V | PNSMZ6VV | L48T8/835/14G-ID-10V | 5.1 |
| L48T8/840/14G-ID-10V | PE8LP8K0 | L48T8/840/14G-ID-10V | 5.1 |
| L48T8/850/14G-ID-10V | P97VDBGC | L48T8/850/14G-ID-10V | 5.1 |
Specification data is based on tests performed in a controlled environment and represents relative performance. Actual performance can vary depending on operating conditions. Application and performance data subject to change without notice. All specifications are nominal unless noted otherwise.
