The Flex (Type B) nano plastic lamps are designed to be the perfect retrofit solution to move from traditional fluorescent lamps to energy saving LEDs. This ballast bypass lamp has everything needed built into the lamp with proven energy savings, long life, surge suppression and industry leading safety features. The single ended lamp has power on one end. Nano plastic tube qualfiies any NFS 2 application without breakage.
| Ordering Code | Length (in) | Lamp Wattage | Input Voltage | CCT (K) | Initial Lumens | CRI | Beam Angle | System Efficacy | Life |
|---|---|---|---|---|---|---|---|---|---|
| L24T8/830/8P-ID | 24 | 8 | 120-277 | 3000 | 1100 | 83 | 325 | 138 | 50000 |
| L24T8/835/8P-ID | 24 | 8 | 120-277 | 3500 | 1100 | 83 | 325 | 138 | 50000 |
| L24T8/840/8P-ID | 24 | 8 | 120-277 | 4000 | 1100 | 83 | 325 | 138 | 50000 |
| L24T8/850/8P-ID | 24 | 8 | 120-277 | 5000 | 1100 | 83 | 325 | 138 | 50000 |

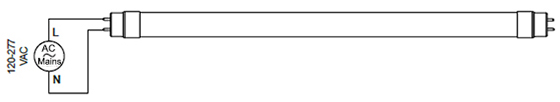

Note: Will not operate on shunted sockets. Use only with non-shunted (rapid start) sockets.
| Ordering Code | DLC Product ID | DLC Product Model | DLC Version |
|---|---|---|---|
| L24T8/830/8P-ID | PL3C9OHOPGI0 | L24T8/830/8P-ID | 5.0 |
| L24T8/835/8P-ID | PL5SEWQBITO1 | L24T8/835/8P-ID | 5 |
| L24T8/840/8P-ID | PLNBE5JR2ARS | L24T8/840/8P-ID | 5 |
| L24T8/850/8P-ID | PLD9B599654V | L24T8/850/8P-ID | 5 |
Specification data is based on tests performed in a controlled environment and represents relative performance. Actual performance can vary depending on operating conditions. Application and performance data subject to change without notice. All specifications are nominal unless noted otherwise.
