Flex Compact LED Bulb

Commercial Grade Type B Compact LED Lamp

CLD18WH/8XX-ID

CLD18WH/8XX-ID

Descriptions:

The Flex (Type B) compact lamps are designed to be the perfect retrofit solution to move from traditional fluorescent lamps to energy saving LEDs. This ballast bypass lamp has everything needed built into the lamp with proven energy savings, long life, surge suppression and industry leading safety features. The lamp base can fit into any G24d or G24q sockets for easy retrofiting.

Features & Benefits:

  • UL and cUL Listed for Safety
  • No UV, No Mercury
  • Quick Installation
  • High Lumen
  • Extended Life
  • High Quality Color Rendering
  • Five Year Limited Warranty

Specifications:

Ordering Code

Bulb Type

Lamp
Wattage
Input Voltage

CCT

(K)

Initial
Lumens
CRI Beam
Angle
CLD18WH/827-IDB8W120-277V2700K95083120
CLD18WH/830-IDB8W120-277V3000K95083120
CLD18WH/835-IDB8W120-277V3500K95083120
CLD18WH/840-IDB8W120-277V4000K95083120
CLD18WH/850-IDB8W120-277V5000K95083120

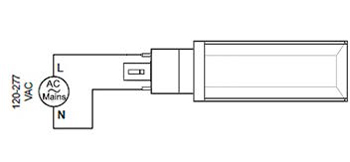

Wiring Diagram:


DLC Listing:

Ordering Code DLC Product ID DLC Product Model DLC Version
CLD18WH/827-IDN/AN/AN/A
CLD18WH/830-IDN/AN/AN/A
CLD18WH/835-IDN/AN/AN/A
CLD18WH/840-IDN/AN/AN/A
CLD18WH/850-IDN/AN/AN/A



Specification data is based on tests performed in a controlled environment and represents relative performance. Actual performance can vary depending on operating conditions. Application and performance data subject to change without notice. All specifications are nominal unless noted otherwise.
