LED EMERGENCY DRIVER

Description:

The Espen Technology VEMB15W-10V (C) Emergency Lighting Inverter works with Espen’s commercial downlight or other 0-10V dimming fixture. VEMB15W-10V provides a maximum load of 15 Watts, it is suitable for 0-10V dimming fixture applicaiotn via switching 0-10V signal internally. VEMB15W-10V (C) allows the connected fixture(s) to be on, off, switched or dimmed without affecting emergency operation. Each unit consists of electronic circuitry; lithium–Ion battery, charger enclosed in a steel case and equiped with flexible conduit.

Electrical:

● Universal 120-347V AC, 50/60Hz Input
● Open Circuit Voltage 170VDC
● Charge/Power “ON” LED Indicator Light and Push-to-Test Switch for Code Compliance Testing
● Long Life, Maintenance Free, Lithium-Ion Battery
● Output Short and Overcurrent Protection: Electronic Limiting, with Normal Operation Resuming
● 90 Minute Minimum Emergency Operating Time Over Full Temperature Range
● 24 Hour Maximum Battery Recharge Time
● Self testing monthly, CEC compliant

Installation:

● For Use with Switched or Un-Switched Fixtures
● Does Not Affect Normal Operation
● Emergency Inverter and Fixtures Must be Fed from Same Branch Circuit

Warranty:

● 5 years
● Meets UL924

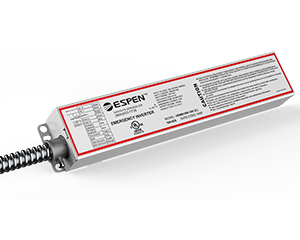

VEMB15W-10V (C)
Model: VEMB15W-10V (C)

Description:
Operates Espen Commercial Downlight
0-10V Dimming fixture up to 80W


Technical Specifications
Input Voltage
120-347VAC
Lamp Operated

Espen Commercial Downlight
0-10V Dimming Fixture up to 80W max.

Emergency Operation
90 mins
Operating Temperature
0C/32F - 50C/120F
Battery
Lithium-Ion
Housing
Durable Steel Housing Contains LED Driver and Battery, Equiped with 13 inches Flexible Conduit
Approval
Meets UL924

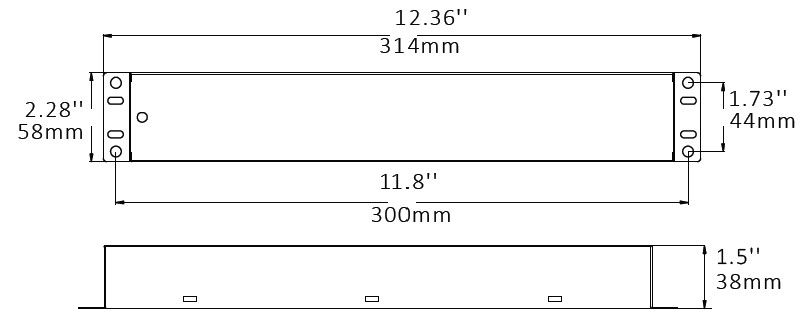

Case Dimensions:



Wiring Diagram:


User Manual VEMB15W-10V (C)_MANUAL.pdf
