RetroFlex LED Drivers for Type A LED Lamps

Constant Current

VEL100BN-4C

VEL100BN-4C

VEL100BN-4C


Descriptions:

The RetroFlex LED drivers work direct with Type A LED lamps to turn it to a type C system. It replaces the outdated fluorescent ballast and maximize the efficiency of LED lamps. With exact same footprint and color coded leads, it is a simple one-to-one replacement. It is future-proof product to convert a fluorescent system fully to LED.

Features & Benefits:

  • Universal Voltage (120-277V)
  • Outdoor Type 1
  • Constant Current
  • Multi Channel Parallel Operation
  • Integrates with Adaptive Lighting Control Systems
  • Compatible with  Type A LED Lamps
  • UL, cUL, UL8750 Class 2
  • FCC Part 15 Class A
  • Operating Temperature: -22°F to 122°F
  • Storage Temperature: -40°F to 131°F

Specifications:

Lamp Type

No of Lamps

Input Voltage Input Power

Input Current (mA)

Power Factor THD Dimming Min. Starting Temp (C)
L24T8/8XX/10G-EB3120-277V39W0.33@120V>0.90<10%N/A-18C
L24T8/8XX/10G-EB4120-277V48W0.4@120V>0.90<10%N/A-18C
L36T8/8XX/10G-EB3120-277V39W0.33@120V>0.90<10%N/A-18C
L36T8/8XX/10G-EB4120-277V48W0.4@120V>0.90<10%N/A-18C
L48T8/8XX/10G-EB3120-277V42W0.35@120V>0.90<10%N/A-18C
L48T8/8XX/10G-EB4120-277V52W0.43@120V>0.90<10%N/A-18C
L48T8/8XX/12G-EB3120-277V47W0.39@120V>0.90<10%N/A-18C
L48T8/8XX/12G-EB4120-277V60W0.5@120V>0.90<10%N/A-18C
L48T8/8XX/12G-EB-AC3120-277V47W0.39@120V>0.90<10%N/A-18C
L48T8/8XX/12G-EB-AC4120-277V60W0.5@120V>0.90<10%N/A-18C
L48T8/8XX/14G-EB3120-277V52W0.43@120V>0.90<10%N/A-18C
L48T8/8XX/14G-EB4120-277V68W0.57@120V>0.90<10%N/A-18C
L48T8/8XX/15G-EB-AC3120-277V55W0.46@120V>0.90<10%N/A-18C
L48T8/8XX/15G-EB-AC4120-277V72W0.6@120V>0.90<10%N/A-18C
L48T8/8XX/12P-EB3120-277V47W0.39@120V>0.90<10%N/A-18C
L48T8/8XX/12P-EB4120-277V60W0.5@120V>0.90<10%N/A-18C
L24T8/8XX/9G-AB3120-277V39W0.33@120V>0.90<10%N/A-18C
L24T8/8XX/9G-AB4120-277V48W0.4@120V>0.90<10%N/A-18C
L36T8/8XX/11G-AB3120-277V44W0.37@120V>0.90<10%N/A-18C
L36T8/8XX/11G-AB4120-277V56W0.47@120V>0.90<10%N/A-18C
L48T8/8XX/12G-AB3120-277V47W0.39@120V>0.90<10%N/A-18C
L48T8/8XX/12G-AB4120-277V60W0.5@120V>0.90<10%N/A-18C
LB31T8U/8XX/13P-AB3120-277V50W0.42@120V>0.90<10%N/A-18C
LB31T8U/8XX/13P-AB4120-277V64W0.53@120V>0.90<10%N/A-18C
LB48T8U6/8XX/13P-AB3120-277V50W0.42@120V>0.90<10%N/A-18C
LB48T8U6/8XX/13P-AB4120-277V64W0.53@120V>0.90<10%N/A-18C

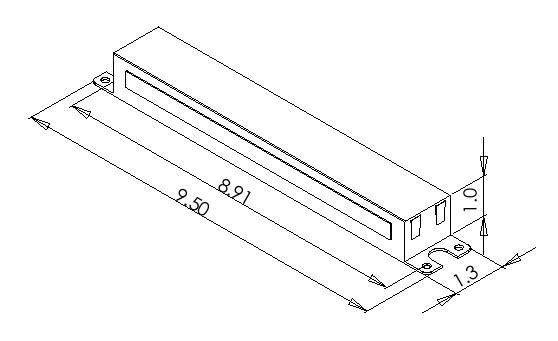

Dimensions:

Ordering Code

Length

(in)

Width

(in)

Height
(in)
Mounting
(in)

Input Black Lead (in)

Input White Lead (in) Output Red Lead (in) Output Blue Lead (in) Output Yellow Lead (in)
VEL100BN-4C 9.5 1.3 1.1 8.9 22 22 31 31 46


Wiring Diagram:




Specification data is based on tests performed in a controlled environment and represents relative performance. Actual performance can vary depending on operating conditions. Application and performance data subject to change without notice. All specifications are nominal unless noted otherwise.
