The RetroFlex LED drivers work direct with Type A LED lamps to turn it to a type C system. It replaces the outdated fluorescent ballast and maximize the efficiency of LED lamps. With exact same footprint and color coded leads, it is a simple one-to-one replacement. With dimmability, it is future-proof product to convert a fluorescent system fully to LED.
| Lamp Type | No of Lamps | Input Voltage | Input Power | Input Current (mA) | Power Factor | THD | Dimming | Min. Starting Temp (C) |
|---|---|---|---|---|---|---|---|---|
| L24T8/8XX/10G-EB | 3 | 120-277V | 39W | 0.33@120V | >0.90 | <10% | 0-10V Dimming | -18C |
| L24T8/8XX/10G-EB | 4 | 120-277V | 48W | 0.4@120V | >0.90 | <10% | 0-10V Dimming | -18C |
| L36T8/8XX/10G-EB | 3 | 120-277V | 39W | 0.33@120V | >0.90 | <10% | 0-10V Dimming | -18C |
| L36T8/8XX/10G-EB | 4 | 120-277V | 48W | 0.4@120V | >0.90 | <10% | 0-10V Dimming | -18C |
| L48T8/8XX/10G-EB | 3 | 120-277V | 42W | 0.35@120V | >0.90 | <10% | 0-10V Dimming | -18C |
| L48T8/8XX/10G-EB | 4 | 120-277V | 52W | 0.43@120V | >0.90 | <10% | 0-10V Dimming | -18C |
| L48T8/8XX/12G-EB | 3 | 120-277V | 47W | 0.39@120V | >0.90 | <10% | 0-10V Dimming | -18C |
| L48T8/8XX/12G-EB | 4 | 120-277V | 60W | 0.5@120V | >0.90 | <10% | 0-10V Dimming | -18C |
| L48T8/8XX/12G-EB-AC | 3 | 120-277V | 47W | 0.39@120V | >0.90 | <10% | 0-10V Dimming | -18C |
| L48T8/8XX/12G-EB-AC | 4 | 120-277V | 60W | 0.5@120V | >0.90 | <10% | 0-10V Dimming | -18C |
| L48T8/8XX/14G-EB | 3 | 120-277V | 52W | 0.43@120V | >0.90 | <10% | 0-10V Dimming | -18C |
| L48T8/8XX/14G-EB | 4 | 120-277V | 68W | 0.57@120V | >0.90 | <10% | 0-10V Dimming | -18C |
| L48T8/8XX/15G-EB-AC | 3 | 120-277V | 55W | 0.46@120V | >0.90 | <10% | 0-10V Dimming | -18C |
| L48T8/8XX/15G-EB-AC | 4 | 120-277V | 72W | 0.6@120V | >0.90 | <10% | 0-10V Dimming | -18C |
| L24T8/8XX/9G-AB | 3 | 120-277V | 39W | 0.33@120V | >0.90 | <10% | 0-10V Dimming | -18C |
| L24T8/8XX/9G-AB | 4 | 120-277V | 48W | 0.4@120V | >0.90 | <10% | 0-10V Dimming | -18C |
| L36T8/8XX/11G-AB | 3 | 120-277V | 44W | 0.37@120V | >0.90 | <10% | 0-10V Dimming | -18C |
| L36T8/8XX/11G-AB | 4 | 120-277V | 56W | 0.47@120V | >0.90 | <10% | 0-10V Dimming | -18C |
| L48T8/8XX/12G-AB | 3 | 120-277V | 47W | 0.39@120V | >0.90 | <10% | 0-10V Dimming | -18C |
| L48T8/8XX/12G-AB | 4 | 120-277V | 60W | 0.5@120V | >0.90 | <10% | 0-10V Dimming | -18C |
| LB31T8U/8XX/13P-AB | 3 | 120-277V | 50W | 0.42@120V | >0.90 | <10% | 0-10V Dimming | -18C |
| LB31T8U/8XX/13P-AB | 4 | 120-277V | 64W | 0.53@120V | >0.90 | <10% | 0-10V Dimming | -18C |
| LB48T8U6/8XX/13P-AB | 3 | 120-277V | 50W | 0.42@120V | >0.90 | <10% | 0-10V Dimming | -18C |
| LB48T8U6/8XX/13P-AB | 4 | 120-277V | 64W | 0.53@120V | >0.90 | <10% | 0-10V Dimming | -18C |

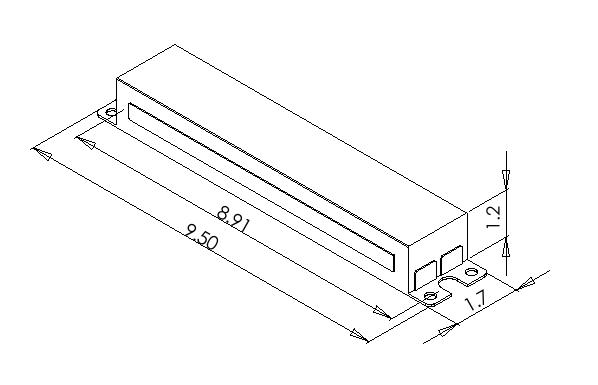

| Ordering Code | Length (in) | Width (in) | Height (in) | Mounting (in) | Input Black Lead (in) | Input White Lead (in) | Output Red Lead (in) | Output Blue Lead (in) | Output Yellow Lead (in) |
|---|---|---|---|---|---|---|---|---|---|
| VEL60BN-4C-10V | 9.5 | 1.7 | 1.2 | 8.9 | 22 | 22 | 31 | 31 | 46 |
Specification data is based on tests performed in a controlled environment and represents relative performance. Actual performance can vary depending on operating conditions. Application and performance data subject to change without notice. All specifications are nominal unless noted otherwise.
