VPL50-2C-025/036/050
VPL50-2C-025/036/050
1Driver Type Constant Current
Output Selectable
LED Driver
No. of Channels 2
Input Voltage 120-277 V
Input Frequency 50-60 Hz
Dimming 0-10V

Features
Universal Voltage (120-277V)
Multiple Output Channels
Constant Current
Per channel 250mA/360mA/500mA
0-10V
Integrates with Adaptive Lighting Control Systems
Compatible with LED modules and Coretech LED tubes
UL, cUL, UL8750 Class 2
FCC Part 15 Class A
Operating Temperature: -22°F to 122°F
Storage Temperature: -40°F to 131°F
Rated life: 50,000hours (Tcase ≤ 185°F/85°C)
CoreTech VPL
PRODUCT SPECIFICATIONS
LED DRIVER
OUTPUT   INPUT
No. of Channels 1 2   Frequency 50-60Hz
No. of  Coretech LED Lamps 1 2   Input Voltage (range) 120-277 VAC
Output Voltage (Range) 20-48VDC   Power Factor (min.) 0.9 @ full load 277VAC
Output Current Range
(Programmable @ full load)		 250mA/360mA/500mA   THD (max.) 20% @ full load 110AC
Aux Power N/A   Efficiency (typical) 0.86
Total Rated Power 48W

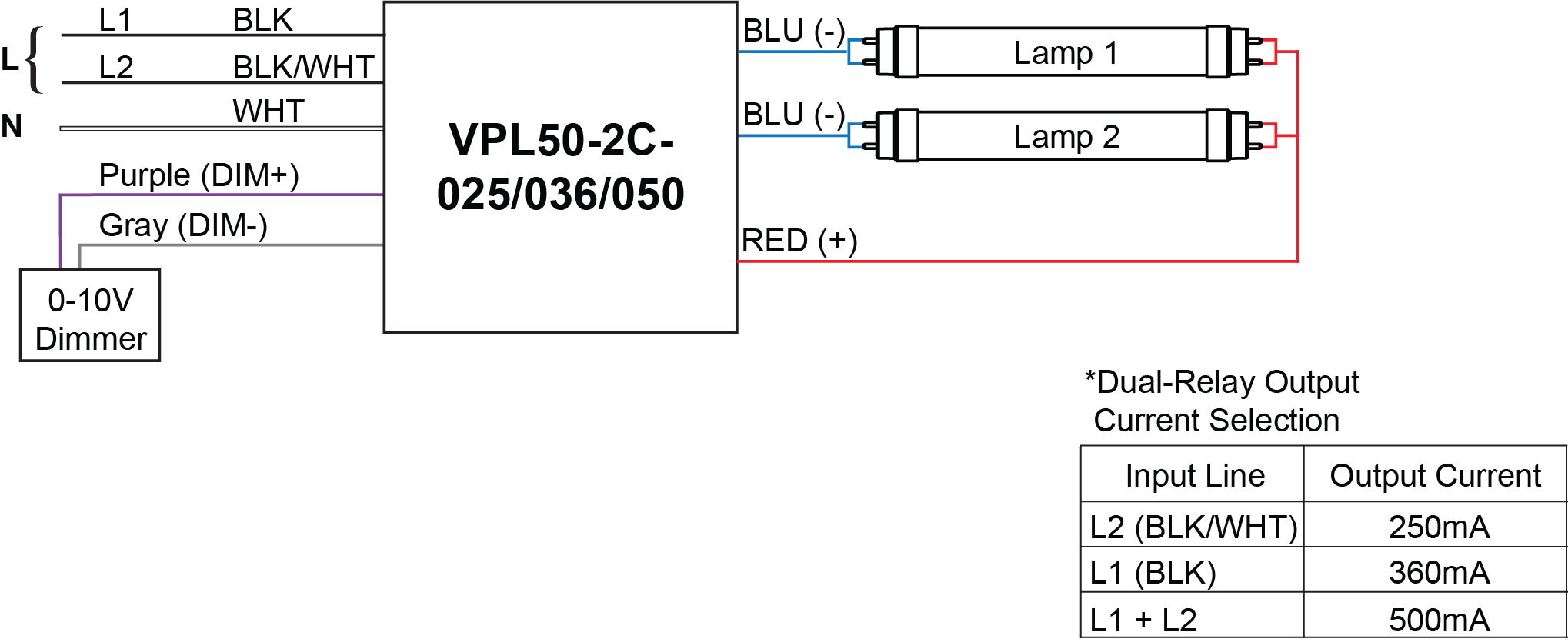

Wiring diagram
Dimension
Specification data is based on tests performed in a controlled environment and represents relative performance. Actual performance can vary depending on operating conditions. Application and performance data subject to change without notice. All specifications are nominal unless noted otherwise.
Espen Technology, Inc. | 12257 Florence Avenue | Santa Fe Springs, CA 90670 | Phone: (562) 529-2938 | Fax: (562) 529-2978
Toll Free:(866) 933-7736 | Email: info@espentech.com | www.espentech.com
