VPL100-4C-030/036
VPL100-4C-030/036
1Driver Type Constant Current
Field Adjustable
LED Driver
No. of Channels 4
Input Voltage 120-277 V
Input Frequency 50-60 Hz
Dimming 0-10V

Features
Universal Voltage (120-277V)
Multiple Output Channels
Constant Current
Per channel 300mA / 360mA
0-10V
Integrates with Adaptive Lighting Control Systems
Compatible with LED modules and Coretech LED tubes
UL, cUL, UL8750 Class 2
FCC Part 15 Class A
Operating Temperature: -22°F to 122°F
Storage Temperature: -40°F to 131°F
Rated life: 50,000hours (Tcase ≤ 185°F/85°C)
CoreTech VPL
PRODUCT SPECIFICATIONS
LED DRIVER
OUTPUT   INPUT
No. of Channels 3 4   Frequency 50-60Hz
No. of  Coretech LED Lamps 3 4   Input Voltage (range) 120-277 VAC
Output Voltage (Range) 20-46VDC   Power Factor (min.) 0.9 @ full load 277VAC
Output Current Range
(Programmable @ full load)		 300mA / 360mA   THD (max.) 20% @ full load 110AC
Aux Power N/A   Efficiency (typical) 0.86
Total Rated Power 66W

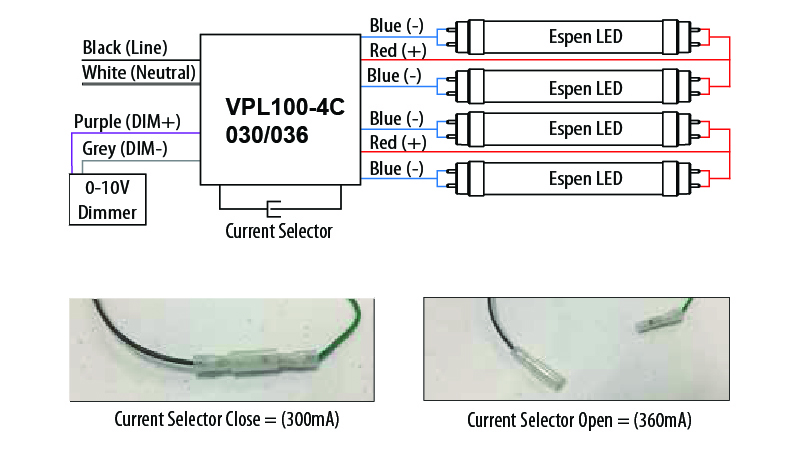

Wiring diagram
Dimension
Specification data is based on tests performed in a controlled environment and represents relative performance. Actual performance can vary depending on operating conditions. Application and performance data subject to change without notice. All specifications are nominal unless noted otherwise.
