WL Outdoor LED Drivers

Constant Current

VEL200XXXMVHB-37

VEL200XXXMVHB-37

Descriptions:

The WL series of outdoor LED drivers offer the perfect power to fixtures in any severe environment. Accurate constant current design keep the performance with high efficiency. Metal housing provides best heatsinking to guarrantee the long life operation.

Features & Benefits:

  • Universal Voltage (120-277V)
  • Outdoor
  • Constant Current
  • 0-10V Dimming
  • Integrates with Adaptive Lighting Control Systems
  • Compatible with LED modules
  • UL, cUL, UL8750 Class 2
  • FCC Part 15 Class A
  • Operating Temperature: -22°F to 122°F
  • Storage Temperature: -40°F to 131°F

Specifications:

Ordering Code

Max Output Power

Max Output Voltage Output Current (mA)

Input Voltage

Power Factor Min Starting Temp (C) Dimming System
Efficacy
IP Rating
VEL200070MVHB-37200171-286700120-277>0.90-40None91/93IP67
VEL200140MVHB-3720086-1431400120-277>0.90-40None91/93IP67
VEL200210MVHB-3720057-952100120-277>0.90-40None89.5/91.5IP67
VEL200280MVHB-3720043-712800120-277>0.90-40None89.5/91.5IP67
VEL200350MVHB-3720034-573500120-277>0.90-40None89.5/91.5IP67

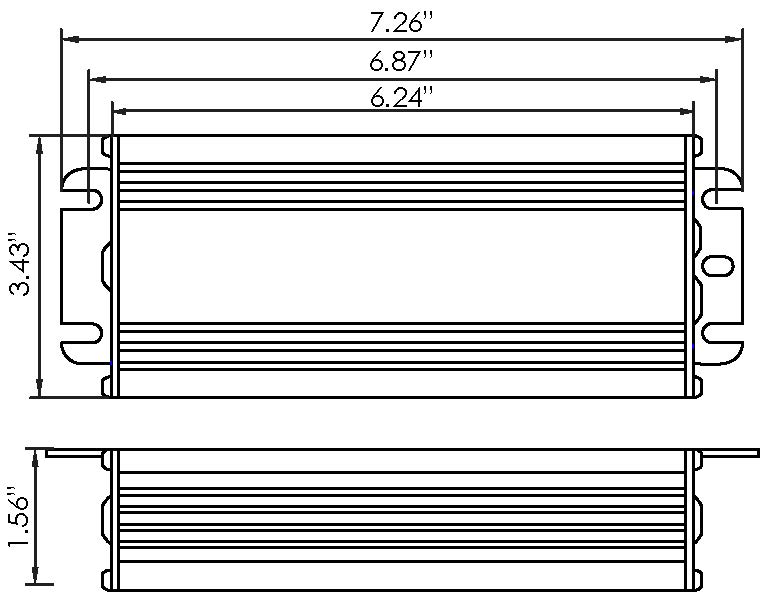

Dimensions:


Ordering Code

Length

(in)

Width

(in)

Height
(in)
Mounting
(in)

Input Black Lead (in)

Input White Lead (in) Output Red Lead (in) Output Yellow Lead (in)
VEL200070MVHB-377.263.431.566666
VEL200140MVHB-377.263.431.566666
VEL200210MVHB-377.263.431.566666
VEL200280MVHB-377.263.431.566666
VEL200350MVHB-377.263.431.566666


Wiring Diagram:




Specification data is based on tests performed in a controlled environment and represents relative performance. Actual performance can vary depending on operating conditions. Application and performance data subject to change without notice. All specifications are nominal unless noted otherwise.
