LMV Series LED Drivers

Constant Current

VEL20XXXMVH-14

VEL20XXXMVH-14

Descriptions:

The LMV series of LED drivers offer the perfect power to fixtures in any severe environment. Accurate constant current design keep the performance with high efficiency. Metal housing provides best heatsinking to guarrantee the long life operation.

Features & Benefits:

  • Universal Voltage (120-277V)
  • Outdoor Type 1
  • Constant Current
  • 0-10V Dimming
  • Integrates with Adaptive Lighting Control Systems
  • Compatible with LED modules
  • UL, cUL, UL8750 Class 2
  • FCC Part 15 Class A
  • Operating Temperature: -22°F to 122°F
  • Storage Temperature: -40°F to 131°F

Specifications:

Ordering Code

Max Output Power

Max Output Voltage Output Current (mA)

Input Voltage

Power Factor Min Starting Temp (C) Dimming System
Efficacy
IP Rating
VEL20070MVH-142024-30700120-277>0.90-30None80IP20

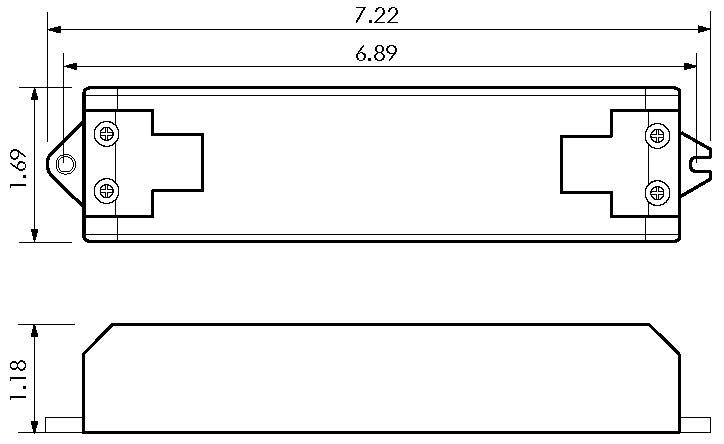

Dimensions:


Ordering Code

Length

(in)

Width

(in)

Height
(in)
Mounting
(in)

Input Black Lead (in)

Input White Lead (in) Output Red Lead (in) Output Yellow Lead (in)
VEL20070MVH-147.221.71.186666


Wiring Diagram:




Specification data is based on tests performed in a controlled environment and represents relative performance. Actual performance can vary depending on operating conditions. Application and performance data subject to change without notice. All specifications are nominal unless noted otherwise.
