The LPD series of outdoor LED drivers offer the perfect power to fixtures in any severe environment. Accurate constant current design keep the performance with high efficiency. Metal housing provides best heatsinking to guarrantee the long life operation.
| Ordering Code | Max Output Power | Max Output Voltage | Output Current (mA) | Input Voltage | Power Factor | Min Starting Temp (C) | Dimming | System Efficacy | IP Rating |
|---|---|---|---|---|---|---|---|---|---|
| VEL20040120HDA-13 | 20 | 35-50 | 400 | 120 | >0.90 | -30 | Phase | 80 | IP54 |
| VEL20050120HDA-13 | 21 | 28-43 | 500 | 120 | >0.90 | -30 | Phase | 80 | IP54 |
| VEL20070120HDA-13 | 21 | 14-30 | 700 | 120 | >0.90 | -30 | Phase | 80 | IP54 |
| VEL20105120HDA-13 | 20 | 10-19 | 1050 | 120 | >0.90 | -30 | Phase | 80 | IP54 |

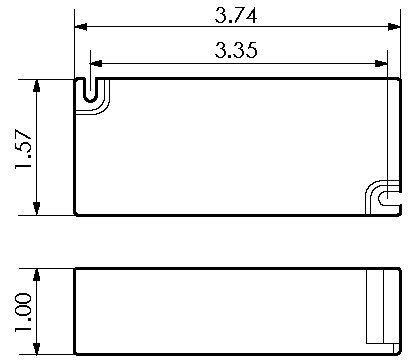

| Ordering Code | Length (in) | Width (in) | Height (in) | Mounting (in) | Input Black Lead (in) | Input White Lead (in) | Output Red Lead (in) | Output Yellow Lead (in) |
|---|---|---|---|---|---|---|---|---|
| VEL20040120HDA-13 | 3.74 | 1.57 | 1 | 6 | 6 | 6 | 6 | |
| VEL20050120HDA-13 | 3.74 | 1.57 | 1 | 6 | 6 | 6 | 6 | |
| VEL20070120HDA-13 | 3.74 | 1.57 | 1 | 6 | 6 | 6 | 6 | |
| VEL20105120HDA-13 | 3.74 | 1.57 | 1 | 6 | 6 | 6 | 6 |
Specification data is based on tests performed in a controlled environment and represents relative performance. Actual performance can vary depending on operating conditions. Application and performance data subject to change without notice. All specifications are nominal unless noted otherwise.
